BEFORE

AFTER

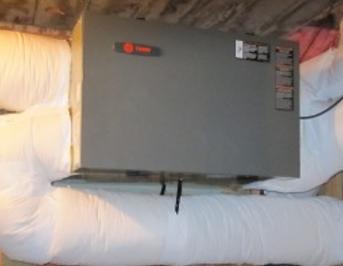

TRANE ENERGY RECOVERY VENTILATOR....A WHOLE HOUSE SOLUTION TO CRISP FRESH AIR

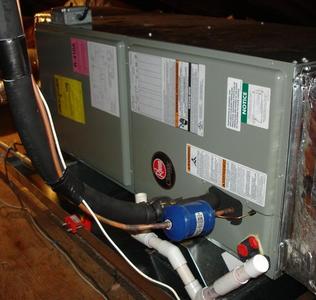

3 TON HEAT PUMP HORIZONTAL ATTIC CHANGEOUT

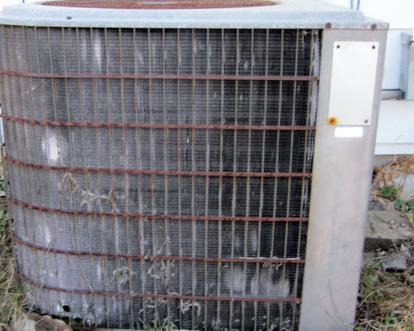

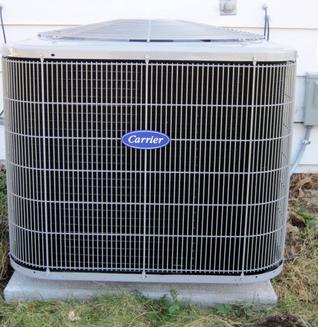

BEFORE AND AFTER ON A 16 SEER 4 TON

CONDENSER CHANGEOUT

3 TON HEAT PUMP CONDENSER

BEFORE AND AFTER ON A 3T HEAT PUMP CHANGE OUT

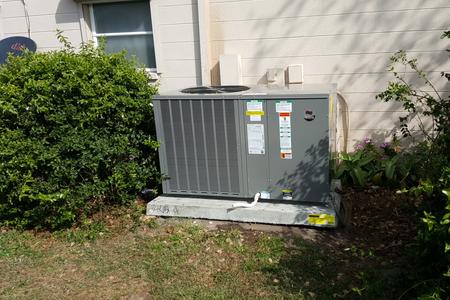

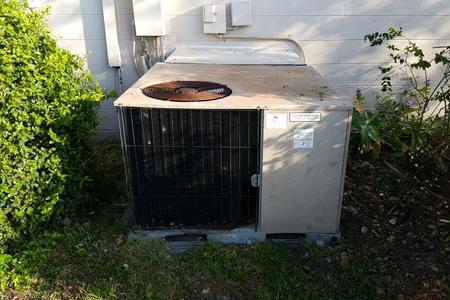

3.5T STRAIGHT COOL PACKAGE CHANGEOUT

3.5T STRAIGHT COOL

HORIZONTAL CHANGEOUT

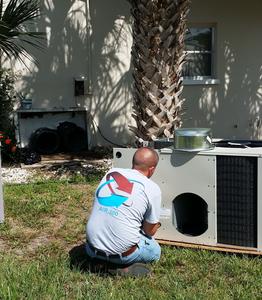

3.5 TON PACKAGED HEAT PUMP

WARRANTY REPAIR

4 TON VERTICAL RHEEM HEAT PUMP

-REBUILD AND INSULATE BASE

-REBUILD RETURN PLENUM

-STANDARD FILTER BASE


5 TON VERTICAL RHEEM HEAT PUMP

-NEW BASE

-NEW RETURN PLENUM

-NEW SUPPLY PLENUM

-STANDARD FILTER BASE


                    For all your heating and cooling needs.......

AIR 360 HEATING AND COOLING       TYPICAL SCOPE OF WORK............

ADDENDUM TO SCOPE OF WORK ‘vertical application’

BOTH HEAT PUMP AND STRAIGHT COOL SYSTEMS INCLUDE THE FOLLOWING:

Install the HVAC system in accordance with ENERGY STAR® Quality Installation Guidelines
Perform Manual J calculations to right size the HVAC system per upgraded energy features of the home and provide documentation to the client.
PLATFORM TOPPED WITH ¾” PLYWOOD AND INSULATED TO CURRENT CODE
FLEX RETURN REPLACED WITH RIGID DUCT (FIBERGLASS BOARD) FROM INSIDE ATTIC TO RETURN PLENUM (TYPICALLY 8-10’)
NEW ¾” CONDENSATION LINE, TRAP AND UNION GLUED AND INSULATED
240 VOLT CONDENSATION PUMP WITH SAFETY, IF NEEDED, DISCHARGE LINE RUN UP THRU ATTIC TO EXTERIOR SOFFIT OF HOME
1.5” X 6” HEAT SHIELD ON UNIT SUPPLY INTO PLENUM
BALANCE ALL DUCTWORK REGISTERS
UNIT CHARGED TO SUBCOOLING/SUPERHEAT METHODOLOGY
ALL SYSTEMS VAC’D DOWN TO BELOW 500 MICRONS
NEW THERMOSTAT HONEYWELL 5000 PRO IN HP OR S/C AND COMMON WIRE USED TO ELIMINATE USE OF BATTERIES.
THERMOSTAT BACKPLATE
HURRICANE SLAB PER FLORIDA CODE
EPOXY COATED TIEDOWNS TO SLAB
TITAN K-FLEX USED AT CONDENSER
UV COATING ON EXPOSED PVC
FILTER RACK WITH 2” FILTER CAPABILITY PLACED UNDER VERTICAL UNIT ON TOP OF PLATFORM
COPPER 90 DEGREE BENDS ELIMINATED WHERE POSSIBLE BY MACHINE BENDING COPPER ON-SITE
40# NITROGEN FLUSH WITH R22/R410A SYSTEMS
REFRIGERANT RECOVERY PER EPA STANDARDS
PLENUMS MASTIC SEALED / COATED
DUCT CLEANING OF ALL LINES IN HOME
SANITIZE ALL DUCTWORK IN HOME
HEATED BIOCIDE ALL DUCTWORK IN HOME
NEW CONDENSATE PAN ‘DRAIN ALERT’ SAFETY FLOAT AT UNIT
NEW CIRCUIT BREAKERS / PROPERLY SIZED WIRING AS UNIT DEMAND AND CODE REQUIRES
LEGAL REMOVAL DISPOSAL RECOVERY OF ALL OLD EQUIPMENT
STARTUP OF UNIT PER MANUFACTURERS CHECKLIST, FOCUS ON MECHANICAL CONNECTIONS, SYSTEM REFRIGERANT CHARGE, NITROGEN PURGE, REFRIGERANT LINE QUALITY, AND CHARGING OF SYSTEM WITH PROPER REFRIGERANT WITH BOTH SUBCOOLING AND SUPERHEAT METHODOLOGIES, CHECK AND ADJUST STATIC PRESSURES TO MANUFACTURERS SPECIFIC RECOMMENDATIONS.
MANUFACTURERS 10 YEAR PARTS / COIL COMPRESSOR WARRANTY (NO – PRORATION)
MANUFACTURERS 1 YEAR LABOR
AIR 360 3 YEAR LABOR EXTENSION
FREE 3 YEAR MAINTENANCE  2X A YEAR
NO SERVICE CALL CHARGES FOR 3 YEARS
ALL WORK TO MEET OR EXCEED COUNTY/STATE CODES.
